How smarter water turned a drought‑stressed fairway into resilient turf.

Summer in California golf is increasingly defined by two forces superintendents know too well: drought and compaction. Fairways bake under intense sun, in‑season rainfall becomes negligible, and reclaimed or marginal water—while critical for conservation—often brings salinity and soil issues that make moisture management a constant battle.

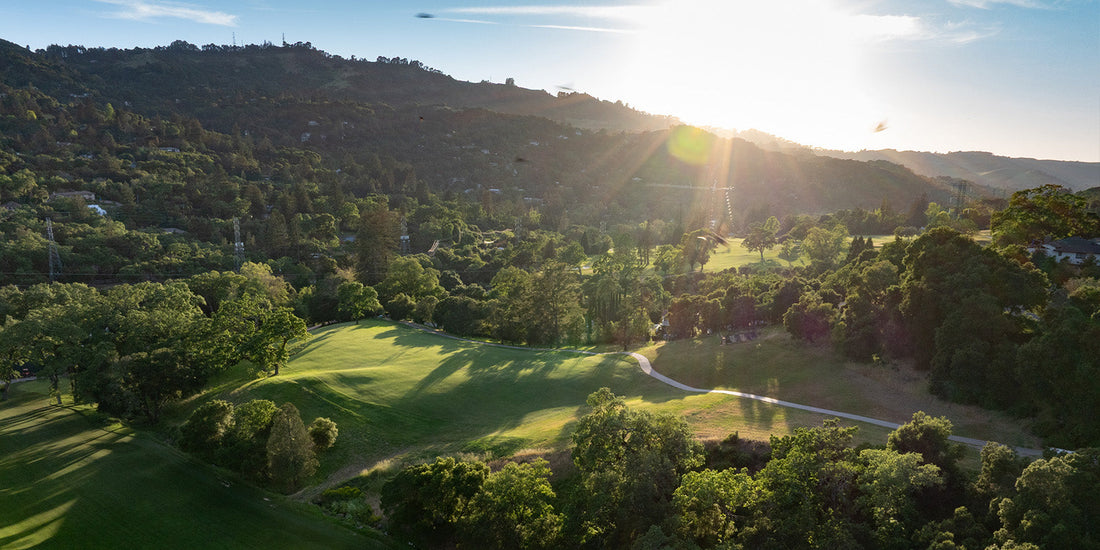

At Orinda Country Club in the East Bay hills, Fairway 4 had become a reliable stress test of those pressures. Mid to late season, upper mounds would dry out, approaches would “melt,” and keeping turf playable meant more wetting agents, more fertilizer, and more emergency hand‑watering. Browning was expected, not optional.

In 2018, Orinda partnered with STS Turf Technical Director Brad Snavely to ask a different question: instead of just adding more chemistry, what if they improved the way the water itself behaved in the soil profile?

A drought problem rooted in soil physics

Beneath Fairway 4, the profile is primarily native clay loam with pockets of decomposed granite. Over time, traffic and repeated cycles of wetting and drying pushed this mix toward compaction and anaerobic conditions. As summer progressed, the pattern was predictable:

• Upper mound areas would go hydrophobic and dry down quickly.

• The side of the fairway into the approach would thin and melt out.

• “Rescue” applications of rewetting agents and fertilizer became routine just to maintain coverage.

It’s a classic scenario: you’re stretching irrigation to conserve water, but salinity, compaction, and heat stress are eroding the benefit. The question at Orinda became whether they could keep tightening water use while making the soil a more forgiving environment for roots.

Installing Magnation’s Rainbolt on Fairway 4

In early June 2018, the club installed a 2‑inch Magnation PVC Rainbolt on the fairway lateral feeding Fairway 4, then set up a six‑month comparison between Magnation‑treated and untreated areas.

The Rainbolt is a compact, in‑line device that passes irrigation water through a magnetic field, creating a “rifling effect” and emitting Extremely Low Frequency (ELF) energy into the water column. Rather than changing the chemistry of the water with additives, Magnation works on its physics:

• Breaking up clustered water molecules.

• Reducing surface tension and generating nano‑bubbles.

• Improving infiltration and percolation in tight, compacted soils.

• Making water more bioavailable at the root interface.

• Helping keep scale and residue from building in the system.

Because the effect travels with the water, these changes extend throughout the run of pipe and the wetted pattern, supporting a more aerobic, biologically active root zone. The operational goal is straightforward: healthier soil, more uniform moisture distribution, and less dependence on aggressive chemistry to hold turf together under stress.

Measuring the impact: EC, nutrients, and biology

Beginning July 5th, Orinda’s team collected side‑by‑side soil samples from treated and untreated plots on Fairway 4. They used a handheld EC (electrical conductivity) meter to track salinity and moisture distribution at depth, and lab analyses to evaluate nutrient behavior and microbial activity. Six patterns stood out.

1. Softer, more open soil

The first difference showed up in the sampling process itself. In untreated areas, a mallet was required to drive the sampler into the profile. In Magnation‑treated plots, a probe could be pushed with much greater ease. That’s a practical, field‑level indication of reduced compaction and a more open structure—exactly what you want heading into peak ET.

2. Water and salts moving deeper

By August, EC readings indicated that treated plots had their highest conductivity at 4–5 inches, while untreated plots peaked at 2–4 inches. That shift suggests that both water and salts were moving deeper in the treated areas. Instead of salinity and moisture concentrating near the surface where roots are most stressed, Magnation‑treated water helped push salts further into the profile, where they are less damaging and less likely to contribute to localized dry spots.

3. Untreated areas still needed rescue fertilizer

When the irrigation source changed later in the season, turf in the untreated plots began to visibly decline and weaken. The assistant superintendent responded with a granular fertilizer application to those areas to try to arrest the slide. Treated plots held up better under the same conditions, indicating that the system was less fragile when water behavior in the soil was improved.

4. Higher nitrogen levels in treated samples

Exchangeable soil data showed modest overall differences between treated and untreated areas, with one clear exception: nitrogen. Nitrogen content was significantly higher in Magnation‑treated samples, suggesting better solubility and less volatilization. For a superintendent, that means more of the N you apply is staying in the root zone and doing its job, instead of being lost or locked up.

5. More soluble nutrients where Magnation was used

Soluble nutrient content also favored the treated side. Calcium solubility averaged higher in treated plots than in untreated plots, and the same held true for magnesium. Higher soluble fractions mean nutrients are in plant‑available forms rather than tied up in the soil matrix—supporting stronger growth and stress tolerance without necessarily increasing fertilizer rates.

6. A 30% increase in microbial activity

Soil respiration testing (Solvita CO₂) showed about a 30% increase in microbial activity in Magnation‑treated areas, along with an average 30% higher overall soil “health score.” That level of biological activity is a sign of an aerobic, functioning soil ecosystem that cycles nutrients more effectively and supports deeper, more resilient rooting.

What this means for your drought plan

For superintendents, the Orinda Fairway 4 study offers a practical takeaway: improving water physics can make your drought program more efficient and more forgiving. By opening up compacted profiles, driving salts deeper, and supporting active biology, Magnation’s Rainbolt helped Orinda:

• Make irrigation water work harder in the root zone.

• Reduce reliance on rewetting agents and emergency fertilizer “rescues.”

• Keep a historically vulnerable fairway healthier deeper into the season.

In a world of tighter water budgets and increasing scrutiny on chemical use, changing how water behaves in the soil may be one of the most leverage‑heavy adjustments you can make—especially on those fairways that always tell the truth about your summer stress.
